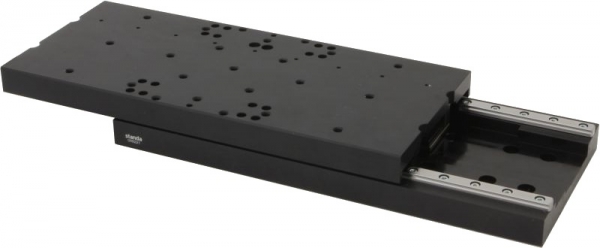

Kinematics & Feedback information: Travel range:170 mm *Encoder type: non-Contact
Optical Encoder: Encoder model: LEn1 *Encoder resolution: on request (up to 50 nm or better) Reference mark: in the center of travel Bidirectional repeatability: ±0.5 µm Unidirectional repeatability: on request

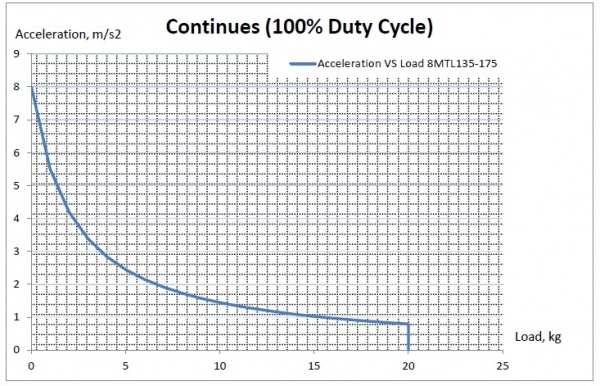

Accuracy: **Non-calibrated: on request Calibrated:±1 µm ***Pitch: ±55 µrad ***Yaw: ±32 µrad ***Roll: on request ****Maximal speed (not loaded): 1.2 m/s ****Maximum acceleration (not loaded): 1.45 g Limit Switches: hall sensors Switch polarity: pushed is closed
Load & Transmission information: Continues force (peak): 113.5 N Load capacity (central): 20 kg Linear motor model: LM1 Motor: 3 Phase BLDC linear servo motor Maximum Bus Voltage: >300 VDC Continues Current: 2.2 A Peak current: 8.8 A Guiding system: recirculating linear rails and carriages
Material: Base material: Aluminum alloy Finish: Black anodizing
Accessories Information: Base plate: not necessary XY configuration: direct Z configuration: available

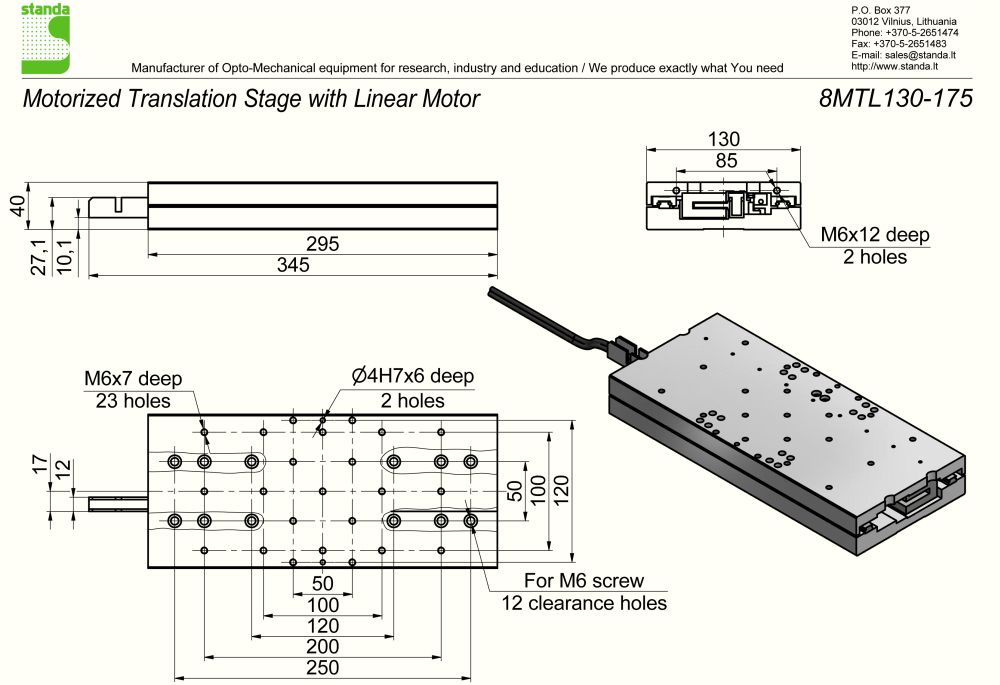

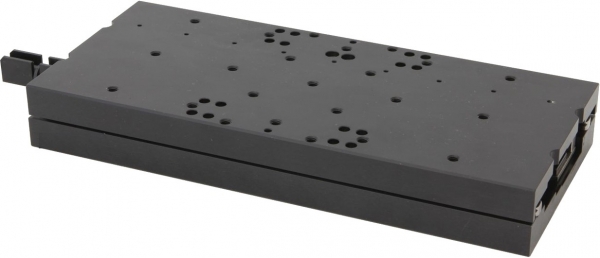

Additional Details: Moving platform dimensions: 130x295 mm Measurement system: Metric Weight: 4.1 kg Moving mass: 2.1 kg
