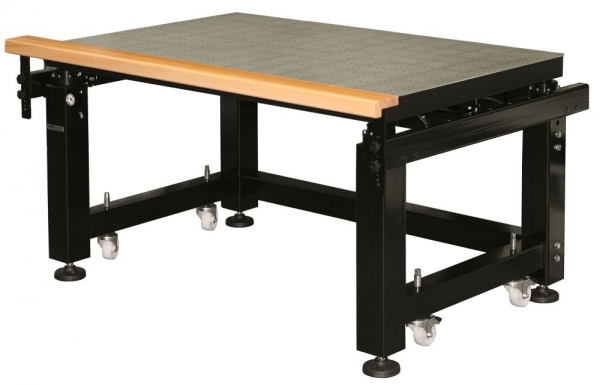

1VIS10W-08-12-77-CA Including Armrest Including Breadboard 800*1200mm / thickness 70 mm With Casters

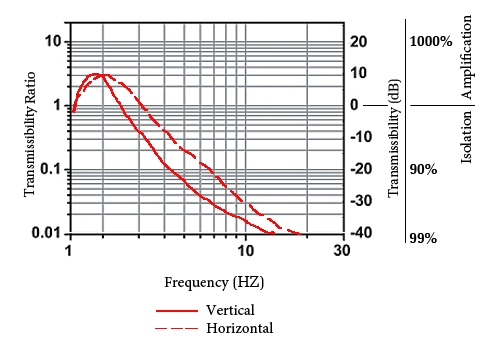

Height of the vibration isolation system 770 mm Vertical movement range 14 mm Precision of automatic level control ±0.3 mm Vertical resonance frequency 1.5 Hz (average load) Vertical isolation at 5 Hz 85–93 % Vertical isolation at 10 Hz 90–98 % Horizontal resonance frequency 1.7 Hz (average load) Horizontal isolation at 5 Hz 85–93 % Horizontal isolation at 10 Hz 90–97 % Pressure from source of air 600 KPa (6 bar) (87 PSI) Air supply socket diameter Ø 6 mm Operating humidity (max) 90 % Operating temperature range 10–50 ºC Load-bearing capacity (at 6 bar) 120 kg per isolator
